PTFE Hoses for Extreme Chemical and Thermal Applications

PTFE (Polytetrafluoroethylene) hoses are engineered to handle the most aggressive chemicals, extreme temperatures, and hygienic applications. These hoses are ideal for high-purity, high-pressure, and high-temperature fluid transfer across industries like pharmaceuticals, food processing, and chemical manufacturing.

Non-stick, chemically inert inner core
Resistant to temperatures from -70°C to +260°C
Excellent corrosion, abrasion, and chemical resistance
Suitable for sanitary and high-purity applications

What Makes PTFE Hoses Exceptional?

Key Features PTFE hoses feature a chemically inert, non-stick fluoropolymer core that offers unmatched resistance to heat, chemicals, and pressure. With smooth or convoluted bore designs and stainless-steel or polypropylene braids, they are ideal for ultra-clean and demanding fluid transfer tasks.

Selection Criteria Choose PTFE hoses based on temperature range (up to 260°C), pressure rating, chemical compatibility, flexural strength, and sanitary requirements. Ensure compliance with FDA, USP Class VI, or ISO certifications for hygienic and critical applications.

Common Applications Widely used in pharmaceuticals, food processing, biotech, chemical plants, aerospace, and paint or solvent transfer systems. Ideal wherever ultra-pure, high-temperature, or corrosive media are present.

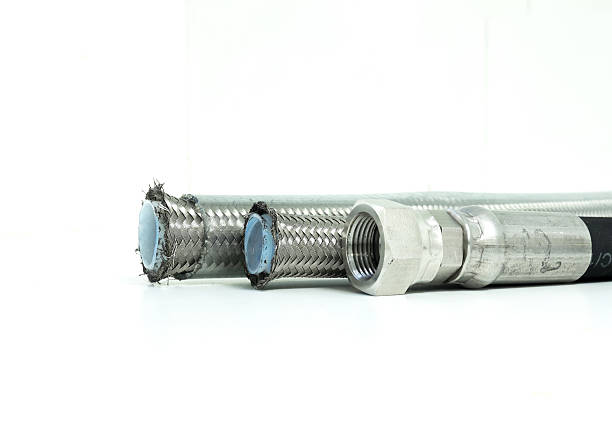

PTFE Hose Components Constructed with a PTFE inner core for chemical resistance, reinforced with stainless steel or polymer braids, and finished with durable end fittings. Optional protective covers resist abrasion, moisture, and UV exposure.

Product Insights

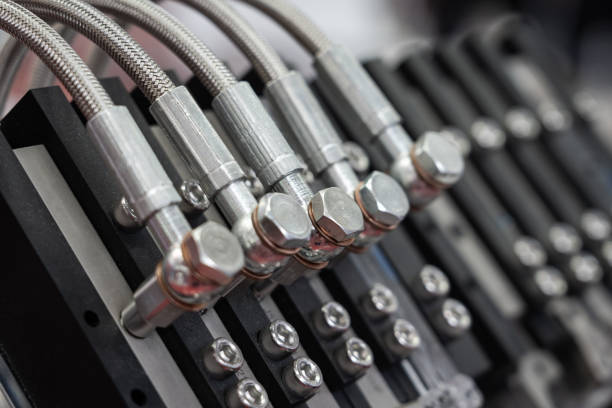

PTFE Hose Assemblies

Overview: PTFE hose assemblies are high-performance flexible tubes made from Polytetrafluoroethylene (PTFE), known for their chemical resistance, non-stick surface, and high temperature capabilities. Ideal for demanding fluid transfer applications.
Uses: Extensively used in pharmaceuticals, food processing, chemical plants, aerospace, and automotive industries due to their compatibility with aggressive chemicals, high purity, and cleanliness requirements.
Customization: Available with a variety of stainless steel or polymer braiding, end fittings, and liners for both smooth bore and convoluted hose types to meet industry-specific standards.

Material Composition

PTFE hoses are constructed with virgin or anti-static PTFE liners, optionally braided with stainless steel or polypropylene for flexibility and external protection.

Performance

They offer excellent thermal stability, chemical resistance, non-stick properties, and can operate in extreme temperature ranges from -70°C to +260°C.

Types of PTFE Hoses

Includes Smooth Bore PTFE Hoses for easy flow, Convoluted PTFE Hoses for greater flexibility, and Multi-layered PTFE Hoses for added pressure and chemical resistance.

Product Categories

Types of PTFE Hoses We Offer

Discover our selection of PTFE (Polytetrafluoroethylene) hoses designed for high temperature, chemical resistance, and non-stick performance across industrial applications.
